ML-S-4GE-1MGE-AU

MeshLinq™

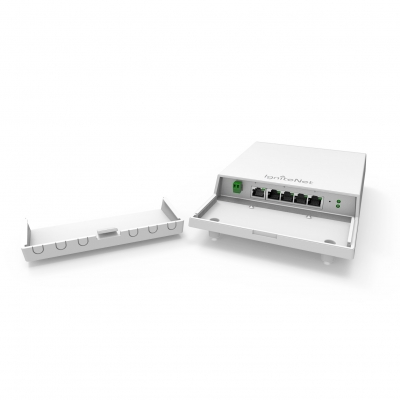

IgniteNet™’s MeshLinq™ is the first of its kind: a cloud-managed, Trill-enabled, managed switch with power over ethernet output purpose built for flexible, redundant, future-proof network deployments. The MeshLinq™ brings proven, high-end datacenter technology to ISPs worldwide by bringing the Trill mesh protocol at an affordable price-point. The sleek design of the MeshLinq™ allows it to be placed inconspicuously indoors or outdoors, bringing simplified, easy to install network management to any location. When paired with the MetroLinq platform, blazingly fast, secure, and robust networks are a breeze to deploy.

Features
  • Cloud-Enabled Networking
  • Powerful Trill Bridge Deployments
  • Power Management
  • Robust Yet Simple Mounting Options
Product Specifications

• 1x 2.5Gbps Ethernet Port (PoE IN)
• 4x Gigabit Ethernet Port (PoE OUT)
• Dual flash image support
• DC Input Screw Terminal
• LEDs: Power, Ethernet
Power:
• 24-56V DC
• 24-48V PoE
• 10W typ (TBD)
• PoE Out (1A per port)
Operating Temperature: -40Cº to +60Cº
• Store Temperature: -40Cº to 70Cº
• Weather Rating: IP55
• Regulatory/Standards Compliance: FCC/IC, CE
• Dimensions (L x W x H): 240x150x30mm




DOWNLOADS
 Datasheet

ORDERING INFORMATION

Product Name:
MeshLinq™
Product Code:
ML-S-4GE-1MGE-AU
Made in Taiwan
