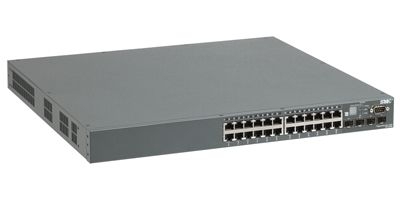

TigerStackâ„¢ Stackable 24-Port 10/100/1000 managed <BR>Layer 3 switch with 4 Gigabit combo ports and 10G uplink slot
SMC Networks' TigerStack 1000 SMC8724ML3 delivers high scalability, wire-speed Gigabit performance, high availability, 10 Gigabit Ethernet uplinks, and redundant power options. It stacks up to 8 units, providing up to 384 Gigabit ports. A stack can be created with either the SMC8724ML3 or the SMC8748ML3, providing unprecedented flexibility. It provides 48 built-in copper Gigabit ports, including (4) Combo SFP ports supporting either copper links or SFP adapters for easy, flexible connection to fiber-based Gigabit media.
| FEATURES | BENEFITS |
|
High-port density and migration protection in a small footprint |
Supports 24/48*10/100/1000Mbps with optional 10G uplink in an 1RU chassis |
|
Advanced Layer 3 Unicast Features |
Supports RIPv1,v2 and OSPF to give wirespeed IP routing |
|
Advanced Layer 3 Multicast Features |
Supports DVMRP and PIM-DM to enable multicast networks |
|
QoS |
Support eight levels of priority, with weighted fair queuing and L2/3/4 IP precedence--ensures smooth transmission of mission critical data |
|
VLAN with GVRP and 802.1s/v |
Support VLANs based on frame tags or ports, plus support for automatic GVRP LAN registration spanning tree per VLAN-- provides maximum security and bandwidth efficiency |
|
IGMP Snooping |
Only allows IP Multicast traffic transmission to the registered members, resulting bandwidth savings--reduce IP multicast traffic and increase LAN performance |
|
MultiLink Trunking with LACP |
Can group links between switches to provide higher bandwidth of up to 16Gbps |
|
Comprehensive security support |
Currently supports RADIUS, IEEE802.1x, SSH, SSL,TACACS+, ACL, with future upgrade to SNMPv3 |
|
Redundant Power Supply |
Provides backup power in case of power failure |
